仕様

　

　 Radiant Flux Bins
　
　1. Radiant flux performance guaranteed within published operating conditions.
　LedEngin maintains a tolerance of ± 10% on flux measurements.
　2. Future products will have even higher levels of radiant flux performance.
　Contact LedEngin Sales for updated information.

　 Peak Wavelength Bins
　
　1. LedEngin maintains a tolerance of ± 2.0nm on peak wavelength measurements.

　 Forward Voltage Bins
　
　1. LedEngin maintains a tolerance of ± 0.04V for forward voltage measurements.

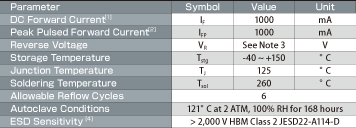

　 Absolute Maximum Ratings
　
　1. Maximum DC forward current is determined by the overall thermal resistance and ambient temperature.
　2. Pulse forward current conditions: Pulse Width ≦ 10msec and Duty Cycle ≦ 10%.
　3. LEDs are not designed to be reverse biased.
　4. Use low temperature solders. LedEngin recommends 58Bi-42Sn (wt.%) Solder.
　5. LedEngin recommends taking reasonable precautions towards possible ESD damages
　and handling the LZ1-00UA00 in an electrostatic protected area (EPA).
　An EPA may be adequately protected by ESD controls as outlined in ANSI/ESD S6.1.

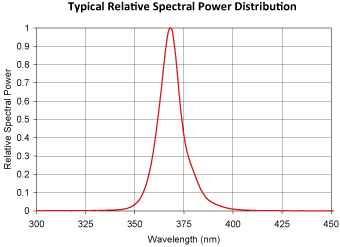

　 Optical Characteristics @ TC = 25℃
　
　1. When operating the UV LED, observe IEC 60825-1 class 3B rating. Avoid exposure to the beam.
　2. Viewing Angle is the off axis angle from emitter centerline where the radiometric power is
　1/2 of the peak value
　3. Total Included Angle is the total angle that includes 90% of the total radiant flux.

　 Electrical Characteristics @ TC = 25℃
　

　 IPC/JEDEC Moisture Sensitivity Level
