仕様

　

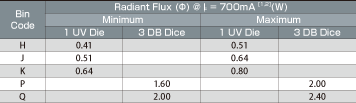

　 Radiant Flux Bins
　
　1. Radiant flux performance guaranteed within published operating conditions.
　LedEngin maintains a tolerance of ± 10% on flux measurements.
　2. Future products will have even higher levels of radiant flux performance.
　Contact LedEngin Sales for updated information.

　 Peak Wavelength Bins
　
　1. LedEngin maintains a tolerance of ± 2.0nm on peak wavelength measurements.

　 Forward Voltage Bins
　
　1. LedEngin maintains a tolerance of ± 0.04V on forward voltage measurements.
　2. For binning purposes, Forward Voltage for Dental Blue is binned with
　all three LED dice connected in series.

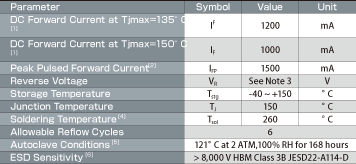

　 Absolute Maximum Ratings
　
　1. Maximum DC forward current is determined by the overall thermal resistance and ambient temperature.
　2. Pulse forward current conditions: Pulse Width ≦ 10msec and Duty Cycle ≦ 10%.
　3. LEDs are not designed to be reverse biased.
　4. Use low temperature solders. LedEngin recommends 58Bi-42Sn (wt.%) Solder.
　5. LedEngin recommends taking reasonable precautions towards possible ESD damages
　and handling the LZ1-00U600 in an electrostatic protected area (EPA).
　An EPA may be adequately protected by ESD controls as outlined in ANSI/ESD S6.1.

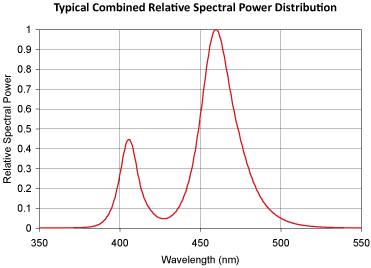

　 Optical Characteristics @ TC = 25℃
　
　1. When operating the UV LED, observe IEC 60825-1 class 3B rating. Avoid exposure to the beam.
　2. Viewing Angle is the off axis angle from emitter centerline where the radiometric power is
　1/2 of the peak value
　3. Total Included Angle is the total angle that includes 90% of the total radiant flux.

　 Electrical Characteristics @ TC = 25℃
　

　 IPC/JEDEC Moisture Sensitivity Level
