仕様

Electro-Optical characteristics at IF=700mA, TA=25℃

Absolute Maximum Ratings



Peak Wavelength : k (370-380nm)

1. Peak Wavelength Measurement tolerance : ±3nm
2. Optical Power Output Measurement tolerance : ± 10%
3. Po is the Total Radiant Flux as measured with an integrated sphere.
4. Forward Voltage Measurement tolerance : ±3%
5, 6. Rθ J-B is measured with a SOC metal core PCB. (25℃≦ TJ ≦ 110℃)
　　Rθ J-C is measured with only emitter. (25℃≦ TJ ≦ 110℃)
　　 Break voltage of Metal PCB is 6.5kVAC
7. It contains a zener chip to protect the product from ESD.ummy box



　

仕様

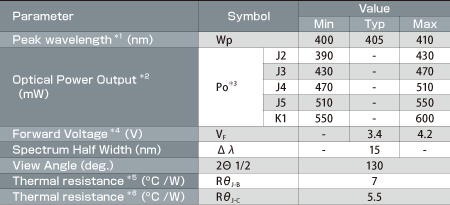

Electro-Optical characteristics at IF=700mA, TA=25℃

Absolute Maximum Ratings



Peak Wavelength : p (400-410nm)

1. Peak Wavelength Measurement tolerance : ±3nm
2. Optical Power Output Measurement tolerance : ± 10%
3. Po is the Total Radiant Flux as measured with an integrated sphere.
4. Forward Voltage Measurement tolerance : ±3%
5, 6. Rθ J-B is measured with a SOC metal core PCB. (25℃≦ TJ ≦ 110℃)
　　Rθ J-C is measured with only emitter. (25℃≦ TJ ≦ 110℃)
　　 Break voltage of Metal PCB is 6.5kVAC
7. It contains a zener chip to protect the product from ESD.ummy box
