仕様

　Pure White

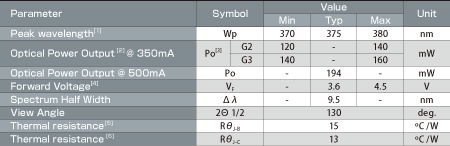

　Electro-Optical characteristics at 350mA 　(Ta=25℃, RH30%)
　
　1. Peak Wavelength Measurement tolerance : ±3nm
　2. Optical Power Output Measurement tolerance : ± 10%
　3. Po is the Total Radiant Flux as measured with an integrated sphere.
　4. Forward Voltage Measurement tolerance : ±3%
　5, 6. Rθ J-B is measured with a SOC metal core PCB. (25℃≦ TJ ≦ 110℃)
　　　Rθ J-C is measured with only emitter. (25℃≦ TJ ≦ 110℃)
　　　Break voltage of Metal PCB is 6.5kVAC



　Absolute Maximum Ratings
　

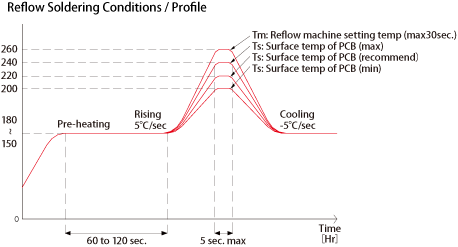

　Reflow Soldering Conditions / Profile
